Setup Guide

This guide focuses on setting up the Helios application on your local machine. The following sections will walk you through the necessary steps to install the required dependencies and run the application. The production setup is covered in the Production Setup Guide.

Prerequisites

Before you can start Helios, you need to install and configure some dependencies and tools.

Java JDK: We use Java (JDK 21) to develop and run the server, which is based on Spring Boot.
Docker: We use Docker to run the database, client and other services in containers. You can check if you installed Docker correctly by running docker --version in your terminal.
Ngrok: We use Ngrok to expose the webhook listener to the internet. You can check if you installed Ngrok correctly by running ngrok --version in your terminal. In the coming sections, we will guide you through the setup of Ngrok.

IDE Setup

The first step is to set up an Integrated Development Environment (IDE) for development.

We recommend the lightweight Visual Studio Code (VS Code) editor.
Alternatively, you can use IntelliJ IDEA (or other IDE’s).

In case you use VS Code, install the recommended extensions when opening the project for the first time. If the recommended extension download doesn’t pop up then you can find them in .vscode/extension.json and install them manually via the extension manager in the menu on the left.

Clone the Repository

Clone the Helios repository to your local machine:

git clone git@github.com:ls1intum/Helios.git     # Clone with git
git clone https://github.com/ls1intum/Helios.git # Alternatively clone with https

Note

Before running Helios, you need to set up ngrok and a GitHub App to receive events from GitHub. First step is to set up ngrok, which will expose your local webhook listener to the internet. Then, you need to create a GitHub App that Helios will use to authenticate and receive events from GitHub.

Setting Up ngrok Locally

Helios listens for events from GitHub repositories and publishes them to a NATS server. This is essential for real-time event processing and integration with GitHub. Events will be published to NATS with the subject: github.<owner>.<repo>.<event_type>

Install ngrok: You have two options to install ngrok:
- Via npm:
```
npm install -g ngrok
```
- Download the binary directly from https://ngrok.com/downloads/ and follow the platform-specific instructions.
Create an ngrok Account - Go to https://ngrok.com/ and sign up. - From the navigation bar, select “Getting Started → Your Authtoken.”
Reserve a Persistent Domain By default, free ngrok tunnels use a random subdomain each time you start them. To avoid updating your GitHub webhook URL on every restart, reserve one persistent domain:
- In the ngrok dashboard, navigate to Universal Gateway → Domains.
- Click New Domain and follow the prompts to acquire a free persistent domain (e.g., <YOUR_PERSISTENT_DOMAIN>.ngrok-free.app).
Configure ngrok By default, ngrok looks for a config file at:

macOS: ~/Library/Application Support/ngrok/ngrok.yml

Windows: C:\Users\<YourUsername>\.ngrok2\ngrok.yml
If the file does not exist, create it first.
Your ngrok.yml should include at least:
version: 3

agent:
  authtoken: <YOUR_AUTHTOKEN>

endpoints:
  - name: webhook
    url: <YOUR_PERSISTENT_DOMAIN>.ngrok-free.app
    upstream:
      url: 4201
authtoken: Paste the token following ngrok’s website Getting Started → Your Authtoken.

name: A label for this tunnel (Keep this as webhook. This name will be later used to run the ngrok).

url: Paste your persistent domain following ngrok’s website Universal Gateway → Domains.

upstream.url: The local port where your webhook listener is running (For local development keep it as 4201).

Verify Your Configuration Run the following command:
```
ngrok config check
```
If everything is set up correctly, you should see something like:
```
Valid configuration file at /Users/you/Library/Application Support/ngrok/ngrok.yml
```
Run ngrok With your configuration in place, start ngrok:
```
ngrok start webhook
```
This reads the webhook entry in ngrok.yml, creates a tunnel, and prints the public URL. Point your GitHub webhook to:
```
https://<YOUR_PERSISTENT_DOMAIN>.ngrok-free.app
```

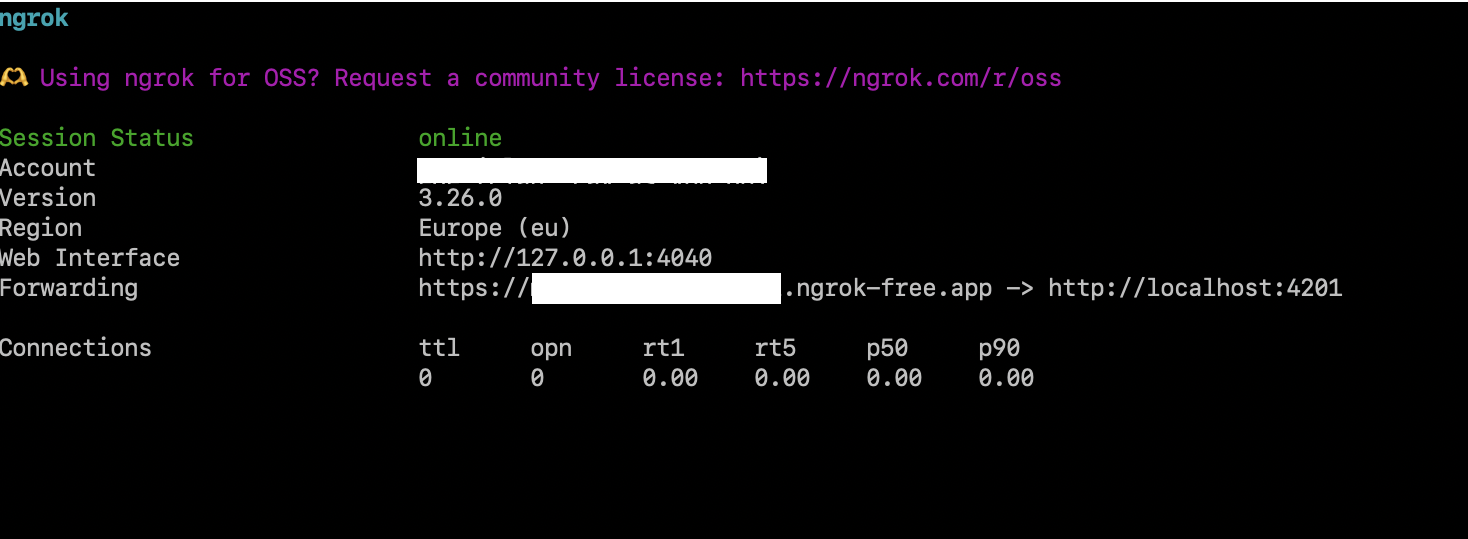

Terminal should look like this:

Now, whenever GitHub sends an event to that URL, ngrok forwards it to your local service on port 4201. The listener picks it up and publishes it to NATS under the subject github.<owner>.<repo>.<event_type>.

Creating a GitHub App

Helios can be configured to use either a Personal Access Token (PAT) or a GitHub App for authentication and authorization with GitHub. Using a GitHub App is recommended for full functionality. We recommend you to fist create an organization on GitHub and then create a GitHub App under that organization. This allows you to separate your testing environment. Below are the steps to create a GitHub App:

Go to GitHub “Developer settings”

If you want the app under an organization: go to your organization’s settings –> Developer settings –> GitHub Apps
https://github.com/organizations/<ORG-NAME>/settings/apps, then click New GitHub App.
Alternatively, if you want it under your personal account, go to: https://github.com/settings/apps, then click New GitHub App.

Provide Basic App Details
- App name: e.g. my-helios
- Homepage URL: Can be your local dev URL or your production URL. (e.g. http://localhost:4200)
- Enable Device Flow: Enable
- Webhooks:

  Active: Enable

  Webhook URL: e.g. https://<ngrok-url>/github or https://<your-domain>/github

  Webhook Secret: This is a secret key used to verify the authenticity of incoming webhooks. You can set it to any random string, e.g. my-webhook-secret. Make sure to remember this secret, as you will need to set it in the environment variables later on.
Set Permissions (Minimal permissions for Helios.)
- Repository Permissions:

  Actions: read & write

  Commit statuses: read & write

  Contents: read-only

  Deployments: read & write

  Environments: read-only

  Issues: read-only

  Metadata: read-only

  Pull requests: read-only
- Organization/Account Permissions:

  Email addresses: read-only
- Subscribe to events:

  Create

  Delete

  Deployment

  Deployment protection rule

  Deployment Status

  Issues

  Label

  Pull request

  Push

  Repository

  Workflow dispatch

  Workflow job

  Workflow run
Click Create GitHub App to finalize the creation of your app.
- After creating the app, you will be redirected to the app’s settings page.

Generate the Private Key
- After creating the app, scroll down to the Private keys section. Click Generate a private key. This will download a .pem file. By default, GitHub provides a PKCS#1-formatted key.
- Convert the .pem from PKCS#1 to PKCS#8 (required by Helios):
openssl pkcs8 -topk8 -nocrypt -in <DOWNLOADED_FILE_NAME>.pem -out converted_key_pkcs8.pem
Do not forget to replace <DOWNLOADED_FILE_NAME> with the actual name of the downloaded file.
- For local development, please save the converted file under server/application-server/ folder.
Install the GitHub App
- In your newly created App settings, click Install App.
- Select the repositories you want Helios to manage, or “All repositories” if appropriate.

Application Configuration

For running the docker containers or the application server with the necessary configuration, you need to set up the environment variables. The environment variables are stored in the .env file in the root directory of the project as well as in the server/application-server directory. You can find .env.example files with example data in the respective directories. Copy the .env.example files and rename them to .env. You can then change/set the environment variables in the .env files to your needs.

Below you can find the required environment variables. For the default values, refer to the .env.example files in the respective directories:

Root: .env.example (root)
Application Server: .env.example (application-server)

root `.env` file

POSTGRES_DB: Database name (Used by postgres container)
POSTGRES_USER: Database user (Used by postgres and keycloak container)
POSTGRES_PASSWORD: Database password (Used by postgres and keycloak container)
NATS_SERVER: NATS server URL (Used by notification container)
NATS_AUTH_TOKEN: This token is used to authenticate different services with the NATS server. You can generate any token you want. (Used by nats-server, webhook-listener and notification container)
WEBHOOK_SECRET: HMAC secret for verifying GitHub webhooks. This should be equal to the webhook secret you set in GitHub App.
KC_HOSTNAME: Hostname of Keycloak (Used by keycloak container)
KEYCLOAK_ADMIN: Keycloak admin username. This is used to create the initial admin user in Keycloak. (Used by keycloak container)
KEYCLOAK_ADMIN_PASSWORD: Keycloak admin password. This is used to create the initial admin user in Keycloak. (Used by keycloak container)

`server/application-server/.env` file

SPRING_PROFILES_ACTIVE: Active Spring profile. For local development, you can set this to dev
DATASOURCE_URL: URL to the database. This should be in the format jdbc:postgresql://<db-host>/<db-name>
DATASOURCE_USERNAME: Database username. This should match the POSTGRES_USER used in the root .env file.
DATASOURCE_PASSWORD: Database password. This should match the POSTGRES_PASSWORD used in the root .env file.
NATS_AUTH_TOKEN: Authorization token for NATS server. This should match the NATS_AUTH_TOKEN used in the root .env file.
NATS_DURABLE_CONSUMER_NAME: Name of the durable consumer for NATS server. With durable consumers, NATS remembers where it left off when the last event was acknowledged. On startup, if a durable consumer with this name already exists, it will be used. Otherwise, a new one will be created.
NATS_CONSUMER_INACTIVE_THRESHOLD_MINUTES: Durable consumer specific settings
NATS_CONSUMER_ACK_WAIT_SECONDS: Durable consumer specific settings
REPOSITORY_NAME: Set only if you want to sync a specific repository. This should be in the format owner/repo (e.g. ls1intum/Helios,ls1intum/Artemis). Regardless of this value, Helios will sync all repositories that the GitHub App has installed to. If GitHub App credentials are not used and only a Personal Access Token (PAT) is used, only this repository will be synced.
DATA_SYNC_RUN_ON_STARTUP: Whether to run the data sync on startup.
RUN_ON_STARTUP_COOLDOWN: When server starts, it first checks the latest run of sync, if it is less than this value in minutes, it will not run the sync again.
OAUTH_ISSUER_URL: URL to Keycloak realm in the format http://<keycloak-host>:<keycloak-port>/realms/<realm-name>
HELIOS_TOKEN_EXCHANGE_CLIENT: Client ID for the token exchange client in Keycloak. This is used to exchange the access token for a user token. With this Helios is able to get the logged in user’s GitHub token and use it to perform actions on behalf of the user.
HELIOS_TOKEN_EXCHANGE_SECRET: Client secret for the token exchange client in Keycloak. This is used to exchange the access token for a user token. With this Helios is able to get the logged in user’s GitHub token and use it to perform actions on behalf of the user.
NOTIFICATIONS_ENABLED: (Optional, default: true) Whether to enable notifications to users

You can configure Helios to work with either a Personal Access Token (GITHUB_AUTH_TOKEN) or a GitHub App. Full functionality is only available if you configure a GitHub App.

If using a GitHub Personal Access Token:

Just set the following environment variable and for the GitHub App related variables leave them empty:

GITHUB_AUTH_TOKEN: Your personal access token (PAT).

If using a GitHub App (recommended for full functionality):

Leave the GITHUB_AUTH_TOKEN variable empty and set the following environment variables:

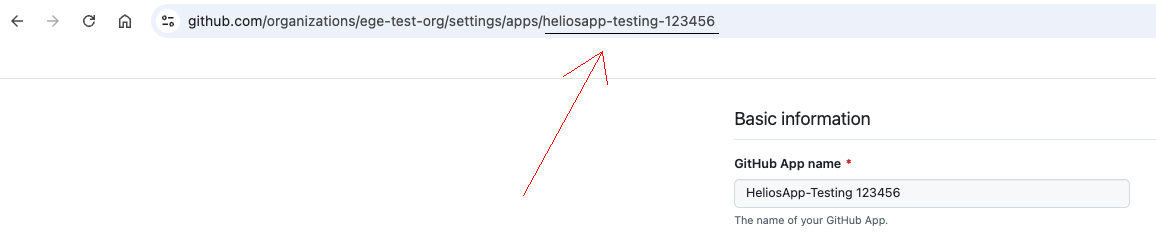

GITHUB_APP_NAME: Name of your GitHub App. After creation, you can confirm the “actual” URL-safe name in the GitHub UI or from the App URL in your browser. For example, if the GitHub UI shows “Helios (AET)” but the URL is https://github.com/organizations/ls1intum/settings/apps/helios-aet, then GITHUB_APP_NAME=helios-aet.

GITHUB_APP_ID: Numeric ID of your GitHub App (from GitHub App settings).
GITHUB_CLIENT_ID: Client ID (from GitHub App settings).
GITHUB_PRIVATE_KEY_PATH: Absolute or relative path to the PKCS#8-formatted private key file associated with your GitHub App.

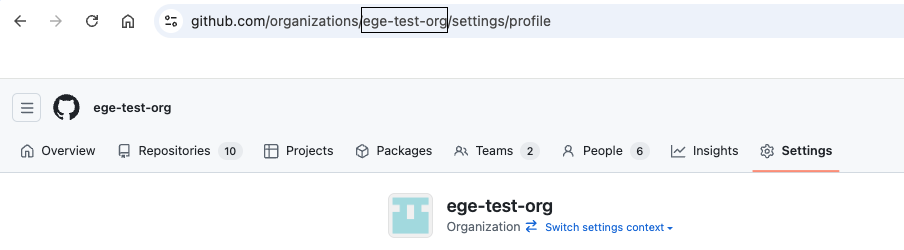

ORGANIZATION_NAME: URL-safe name of the GitHub organization only if you do not know the installation ID and want Helios to auto-detect it at runtime. Helios will retrieve the GitHub App installations for the given organization/user name and pick the correct installation. We advise you to use fill the ORGANIZATION_NAME and leave the GITHUB_INSTALLATION_ID empty, so Helios can automatically detect the installation ID.

GITHUB_INSTALLATION_ID: Installation ID for your GitHub App. If you already know the ID (from the “Install App” screen), you can specify it here. In that case, ORGANIZATION_NAME is not used.

Important: When Helios starts, it will look for all the GitHub App variables above:

If all GitHub App variables (GITHUB_APP_NAME, GITHUB_APP_ID, GITHUB_CLIENT_ID, etc.) are present, Helios authenticates using the GitHub App credentials (full functionality).
If they are not present, but GITHUB_AUTH_TOKEN exists, Helios falls back to using the PAT.

Keycloak Setup

Repository should contain helios-example-realm.json file for local development. If the file is present, then you can continue running the application by following the steps in the Starting the Application Guide.

If the file is not present or you want to set up a fresh Keycloak realm, you can follow the below pages to set up Keycloak:

Keycloak Configuration
