Keycloak Setup

This guide shows how to run Keycloak locally (via Docker Compose), create a new realm from scratch (or skip straight to configuration if you already have one), configure GitHub as an identity provider, create application and clients, and finally export your realm to JSON for reuse.

Prerequisites

• A GitHub account with permission to create a GitHub OAuth App (or a GitHub App).

• Docker and Docker Compose installed locally.

Environment Variables

# PostgreSQL
POSTGRES_DB=helios
POSTGRES_USER=helios
POSTGRES_PASSWORD=helios

# Keycloak Admin Account
KEYCLOAK_ADMIN=admin
KEYCLOAK_ADMIN_PASSWORD=admin
KC_HOSTNAME=localhost

Docker Compose Configuration

version: '3.9'

services:
  postgres:
    image: postgres:17.6-alpine
    environment:
      - POSTGRES_DB=${POSTGRES_DB}
      - POSTGRES_USER=${POSTGRES_USER}
      - POSTGRES_PASSWORD=${POSTGRES_PASSWORD}
    ports:
      - '5432:5432'
    volumes:
      - db-data:/var/lib/postgresql/data
    command: >
      bash -c "
      set -m
      docker-entrypoint.sh postgres &
      until pg_isready -h localhost -p 5432 --timeout=0; do
         echo 'Waiting for Postgres to be ready...';
         sleep 1;
      done;
      psql -v ON_ERROR_STOP=1 -U ${POSTGRES_USER} -tc \"SELECT 1 FROM pg_database WHERE datname = 'keycloak'\" \
         | grep -q 1 || psql -U ${POSTGRES_USER} -c \"CREATE DATABASE keycloak;\"
      fg %1
      "
    networks:
      - helios-network

  keycloak:
    image: quay.io/keycloak/keycloak:26.1.3
    container_name: keycloak
    environment:
      KEYCLOAK_ADMIN: ${KEYCLOAK_ADMIN}
      KEYCLOAK_ADMIN_PASSWORD: ${KEYCLOAK_ADMIN_PASSWORD}
      KC_DB: postgres
      KC_DB_URL_HOST: postgres
      KC_DB_USERNAME: ${POSTGRES_USER}
      KC_DB_PASSWORD: ${POSTGRES_PASSWORD}
      KC_HOSTNAME: ${KC_HOSTNAME}
    ports:
      - '8081:8081'
    depends_on:
      - postgres
    # If you have an existing realm JSON, mount it here; otherwise skip the volume and import flags
    # volumes:
    #   - ./helios-example-realm.json:/opt/keycloak/data/import/helios-example-realm.json:ro
    command: start-dev --http-port=8081 --features="token-exchange,admin-fine-grained-authz"
    networks:
      - helios-network

volumes:
  db-data:

networks:
  helios-network:
    name: helios-network

Setup Steps

1. Start Docker Compose

From the directory containing docker-compose.yml and .env, run:

docker compose up --build

1. PostgreSQL will initialize and create the keycloak database.

2. Keycloak (in dev mode) will start on port 8081.

3. Wait until logs show:

Started Keycloak in development mode (boot time: X seconds)

2. Open the Keycloak Admin Console

1. Access the Keycloak Admin Console at http://localhost:8081/admin

2. Log in with the admin credentials you set in .env

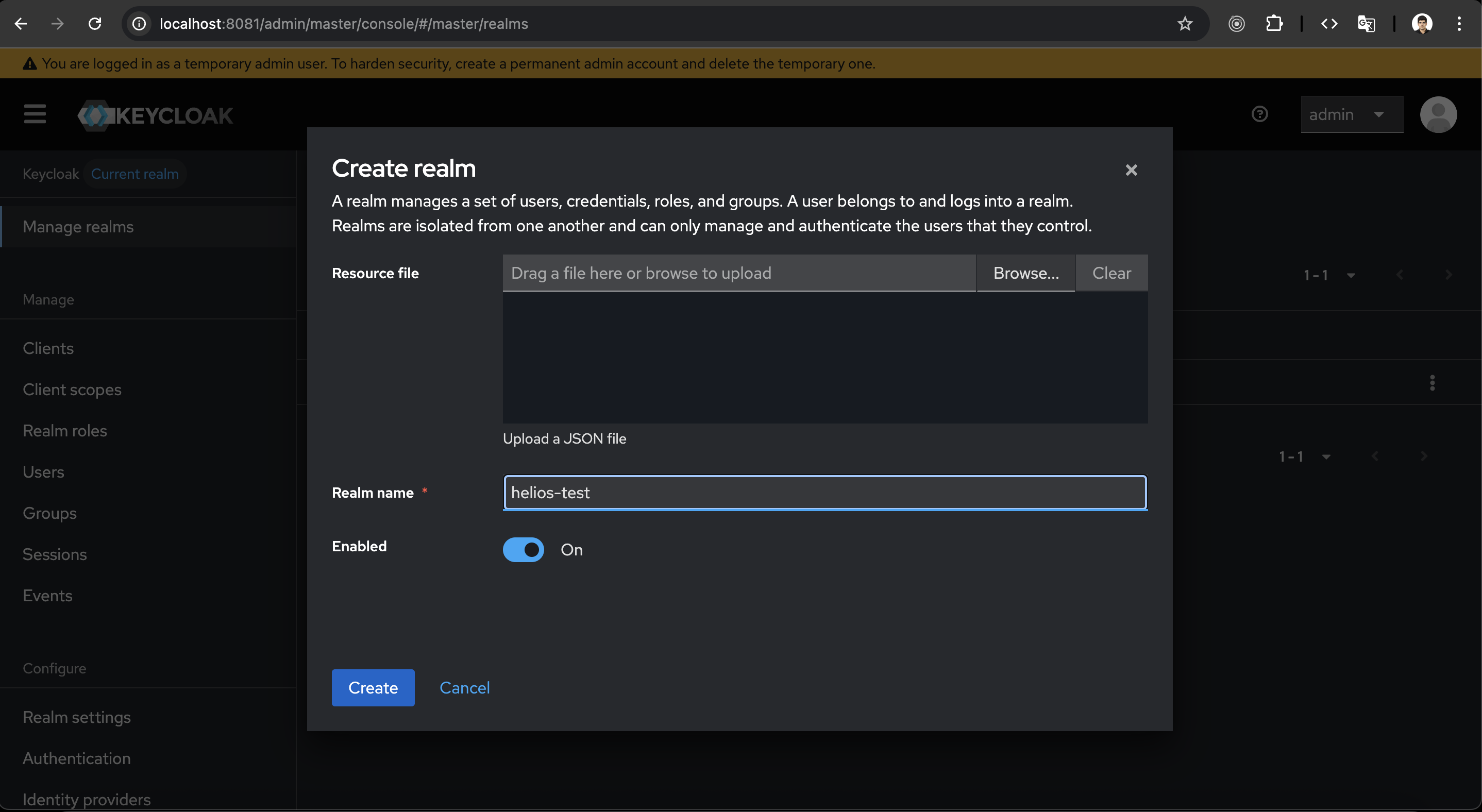

3. Create a new realm from: Manage Realms -> Create Realm

Warning

If you already have a realm, you can skip from here and continue from step 7.

3. Connecting Keycloak to GitHub App

Go back to the Github App created in prevous section (Setup Guide)

• Add a callback URL:

  • Local development: http://localhost:4200/realms/helios-test/broker/github/endpoint

  • Production: https://yourdomain.com/realms/helios-test/broker/github/endpoint (replace with your actual domain, such as helios.aet.cit.tum.de)

• Go to you GitHub App that we created in Creating a GitHub App and create and note down the Client ID and Client Secret.

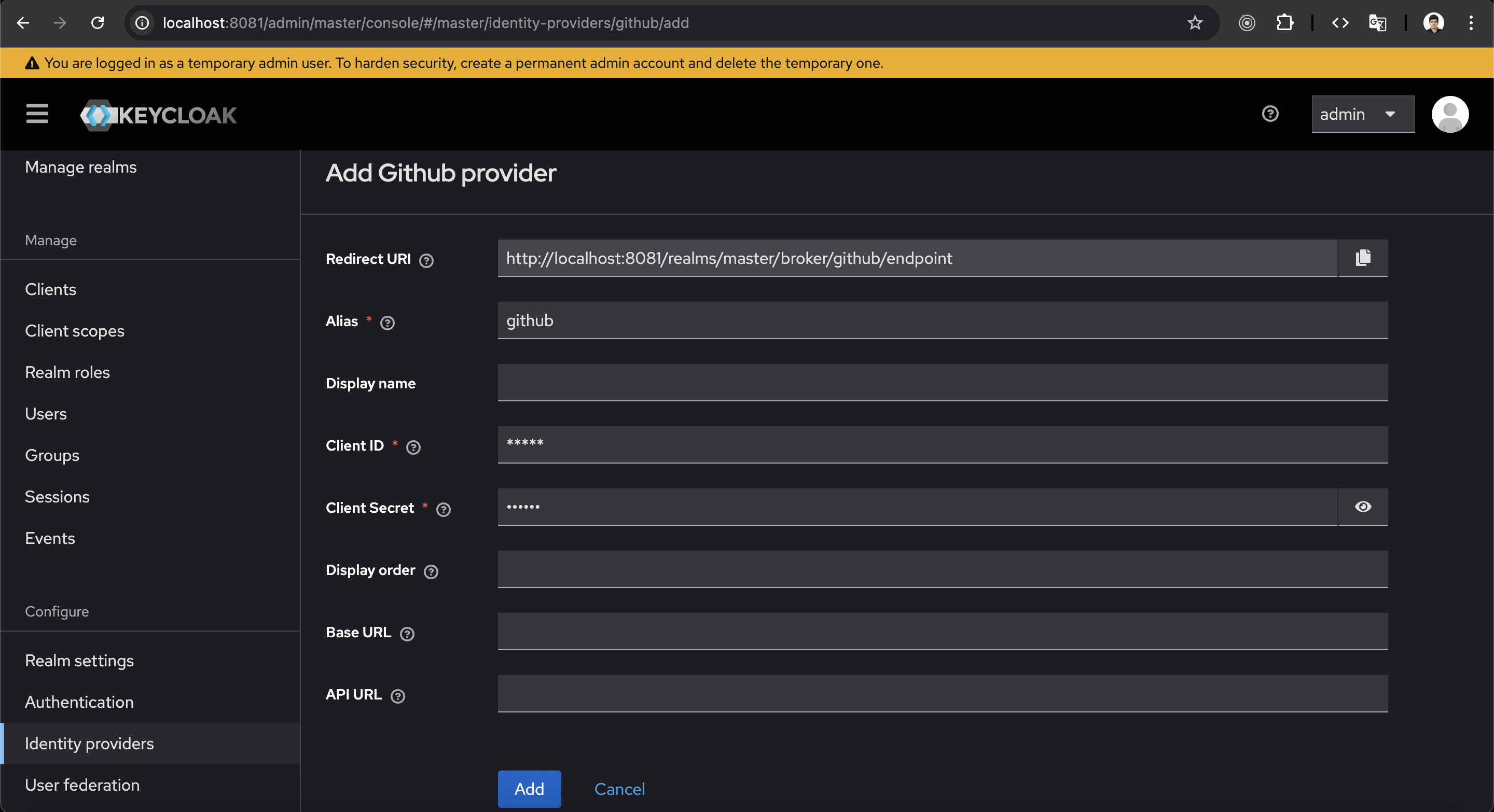

4. Add GitHub as an Identity Provider in Keycloak

1. Go to Identity Providers

2. Choose GitHub

3. Add Display Name: GitHub

4. Add the Client ID and Client Secret you noted down in the previous step.

5. Scopes: read:user workflow

6. Enable Store Tokens (so Keycloak retains the GitHub access token).

7. Click Save

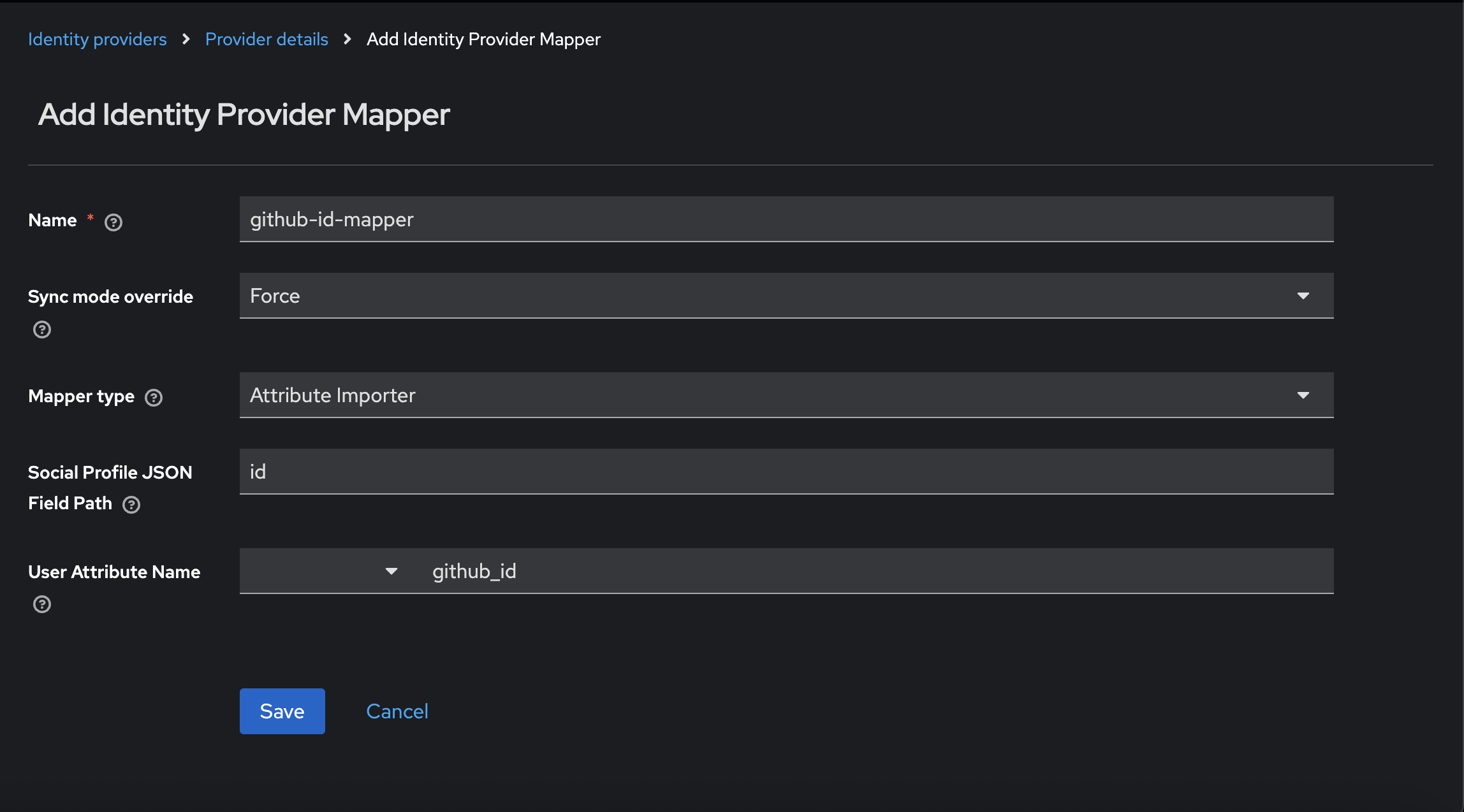

8. Add a Protocol Mapper:

• With this mapper, the generated Keycloak JWT will include the GitHub user ID as a user attribute, which can be used to link Keycloak users with their GitHub accounts in our application-server.

5. Creating the Client

1. Go to Clients -> Create Client

2. Add Client ID: helios-example

3. Add Root URL: http://localhost:4200 (or your domain)

4. Add Valid Redirect URIs: http://localhost:4200/* (or your domain)

5. Add Valid Post Logout Redirect URIs: http://localhost:4200/* (or your domain)

6. Add Web Origins: *

7. Add Admin URL: http://localhost:4200 (or your domain)

6. Adding Mappers to the Client

1. Go to the Clients -> previously created client (helios-example)

2. Go to the Client Scopes

3. Select the relevant scope

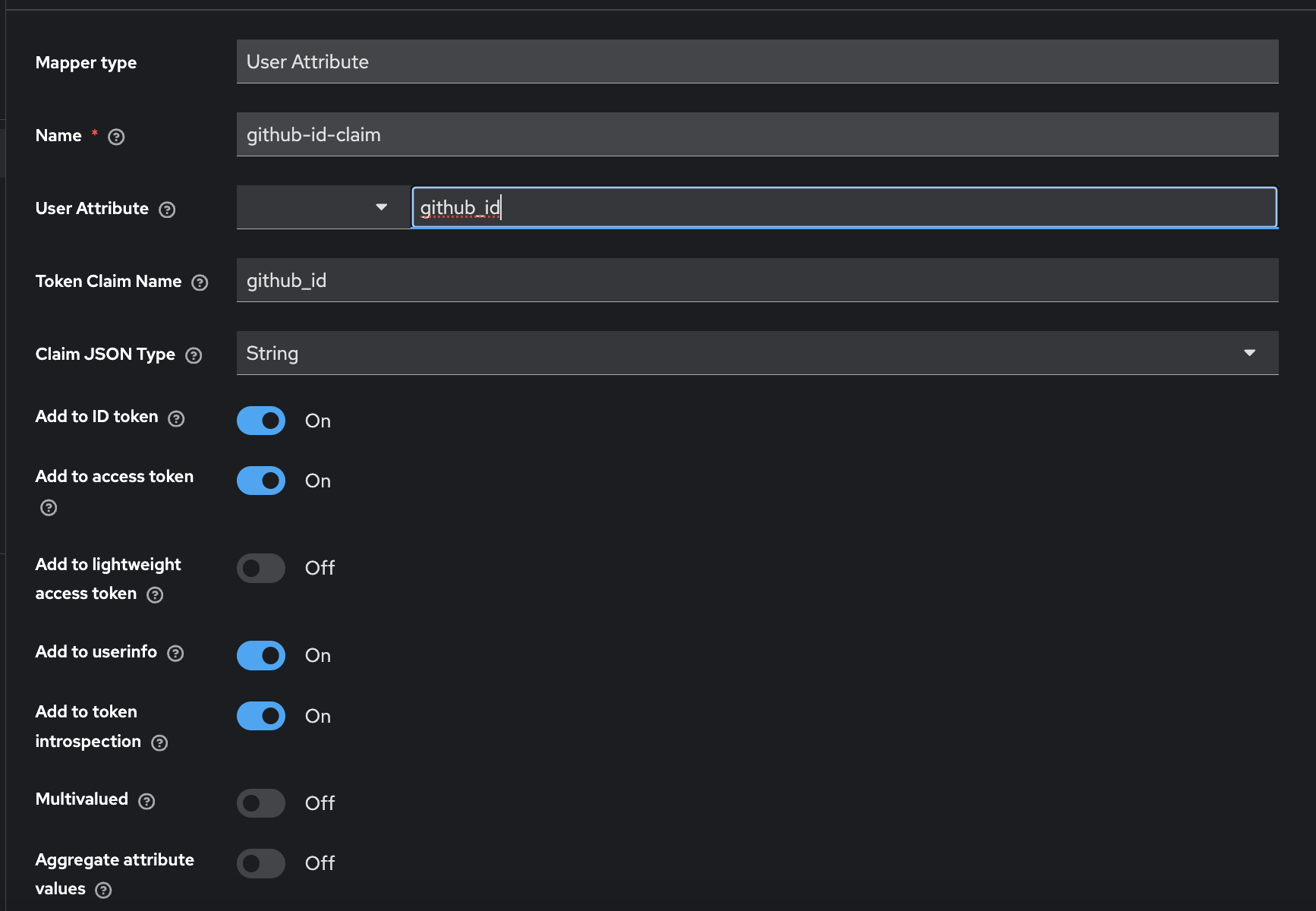

4. Add Mapper -> By configuration -> User Attribute

5. Add following:

7. Exporting the realm

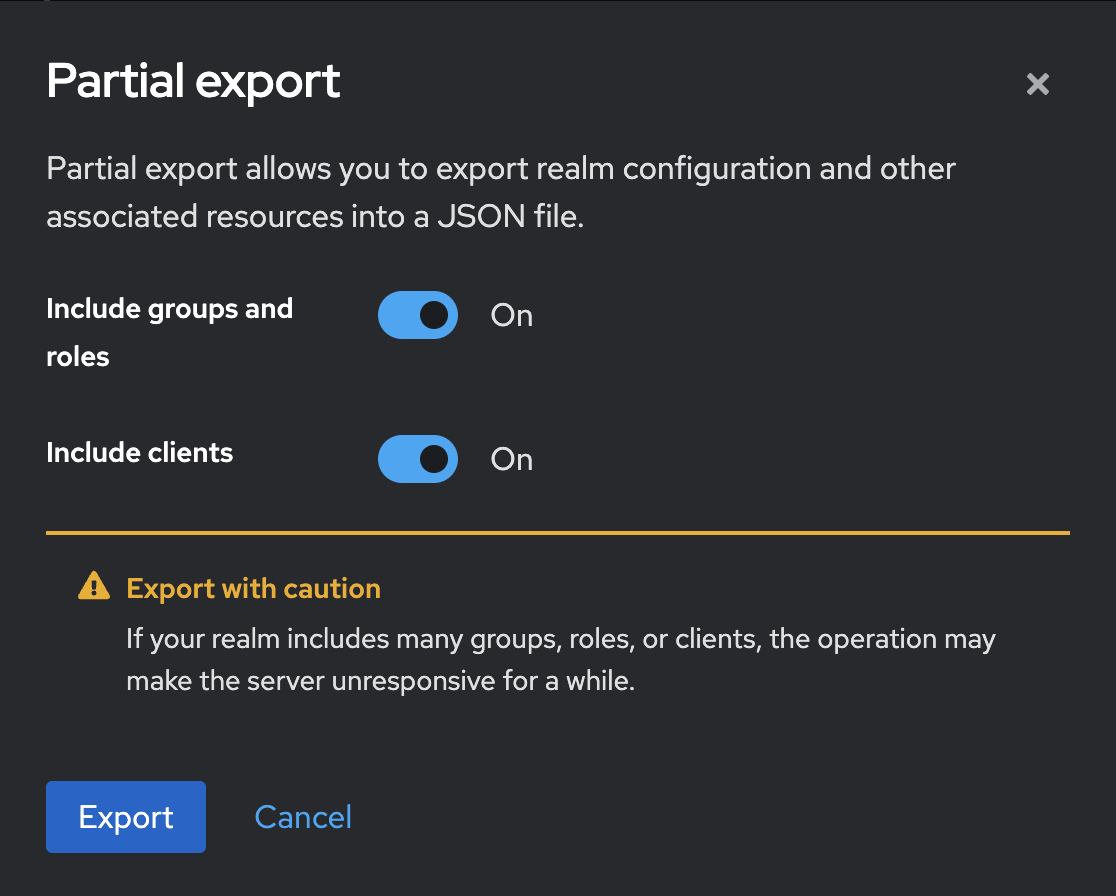

1. Go to Realm Settings -> Actions -> Partial Export:

2. Click Export

Now you can use the exported realm.json file to import it into your Keycloak instance. Uncomment the volume in the docker-compose.yml file and mount the realm.json file to the container.

Custom Keycloak Image (Helios Theme)

We build Keycloak from our own Dockerfile under keycloakify/ directory in our monorepo, which runs keycloakify to compile a React‐based custom “Helios” login theme and places it into /opt/keycloak/providers/. In docker-compose.yml, the keycloak service is defined with build: context: ./keycloakify, and we set KC_THEME=helios-login so that Keycloak serves our branded “Helios” login page instead of the default.

Troubleshooting

If you encounter issues:

1. Postgres not ready:

• Compose’s pg_isready loop retries indefinitely. Check logs:

docker-compose logs -f postgres

2. Admin login fails:

• Ensure KEYCLOAK_ADMIN / KEYCLOAK_ADMIN_PASSWORD match both .env and your login attempt.

• To reset, delete the Keycloak volume and restart.

3. GitHub “Redirect URI mismatch”:

• In Github App settings, verify the callback URL matches the one in Keycloak.

• In Keycloak’s Identity Providers → GitHub → Settings, confirm Client ID and Client Secret.

4. Realm import errors:

• Check that the mounted JSON is valid and readable under /opt/keycloak/data/import/.

• View errors in Keycloak logs.

For additional information, refer to the Keycloak documentation.
